23" Wide Server Rack Shelves

Availability: Out of stock

23" Wide Server Rack Shelves

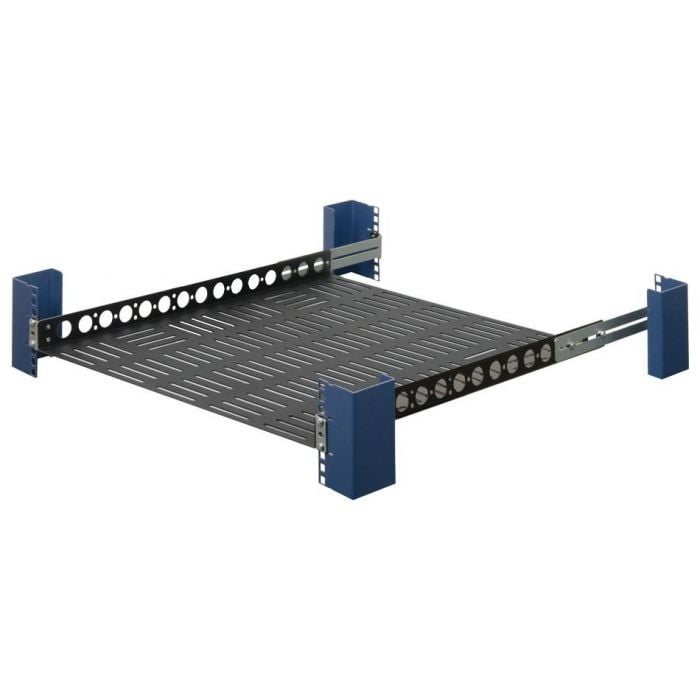

  • Front View- Light Duty (108-4261) 4Post  Mount
    Front View- Light Duty (108-4261) 4Post Mount
    close
  • Front View- Light Duty (108-4261) 2Post Flush Mount
    Front View- Light Duty (108-4261) 2Post Flush Mount
    close
  •  Side View-Light Duty (108-4261) 4Post  Mount
    Side View-Light Duty (108-4261) 4Post Mount
    close
  • Rear View- Light Duty (108-4261) 4Post  Mount
    Rear View- Light Duty (108-4261) 4Post Mount
    close
  • Front View- Light Duty (108-4261) 2Post Center Mount
    Front View- Light Duty (108-4261) 2Post Center Mount
    close
  •  Side View- Light Duty (108-4261) 2Post Flush Mount
    Side View- Light Duty (108-4261) 2Post Flush Mount
    close
  • Rear View-Light Duty (108-4261) 2Post Flush Mount
    Rear View-Light Duty (108-4261) 2Post Flush Mount
    close
  • Side View- Heavy Duty (1USHl-116-23)
    Side View- Heavy Duty (1USHl-116-23)
    close
  • Top View- Heavy Duty (1USHl-116-23)
    Top View- Heavy Duty (1USHl-116-23)
    close

Fixed shelf for Any Equipment

  • Fits 23" wide racks
  • Steel shelf construction
  • 2Post flush or center mount
  • Avaliable in light or heavy duty
  • Ideal for tower, printer, or desktop
  • 108-4261 includes anti-slip mat

Fits Any 2 Post or 4 Post Rack

  • Capacity: 100 lbs (45.36 kgs) (108-4261)
  • Capacity: 500 lbs (226 kgs) (1USHL-116-23)
  • Shelf depth: 24" (610 mm) (108-4261)
  • Shelf depth: 28" (610 mm) (1USHL-116-23)
  • Fits square, round, threaded holes
  • 24" or 28" shelf adjustable mounting from 11-31.5"(279 - 800 mm)

See "Additional Information" for Technical Specifications.

Description

Details

The RackSolutions 23" Wide Server Rack shelves are compatible with 23" wide server racks that are 2 or 4 post. The 23” width is different than the standard EIA-310 19” width equipment that is available throughout our product line. Our rack shelves can be installed into racks with square, round or threaded holes. Rack mount equipment weighing 100 lbs (108-4261) or 500 lbs (1USHL-116-23) can be installed using this rack shelf. The rack shelf is 24" (108-4261) or 28" (1USHL-116-23) deep and can be installed in server racks with installation depths up to 30" and in multiple configurations.

Additional Information

Additional Information

Dell Part Number 108-4261 - A8062057
1USHL-116-23 - A8062056
Equipment Depth Shelf depth: 24" (610 mm) (108-4261) Shelf depth: 28" (610 mm) (1USHL-116-23)
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area 24" x 21.8" (609.6 x 553.72 mm) Light Duty 28" x 21.25" (711.1 x 539.75 mm) Heavy Duty
Finish Black, textured, powder coat
Mounting Depth Range 24" or 28" shelf adjustable mounting from 11-31.5"(279 - 800 mm)
Included Hardware 10-32 and 12-24 screws
Cage nuts are provided for square hole racks
Front brackets: 2 adjustable position front rack flanges
Rear slide brackets: 2 adjustable position rear rack flanges
Weight Capacity Capacity: 100 lbs (45.36 kgs) (108-4261) Capacity: 500 lbs (226 kgs) (1USHL-116-23)
Tool-less/Standard Standard
Hole Type Works in threaded, round and or square hole racks
Amazon ASIN 108-4261 = B00UVK8VQO
1USHL-116-23 = B00UVK6YZE
TAA Compliant Yes
RoHS Compliant Yes
