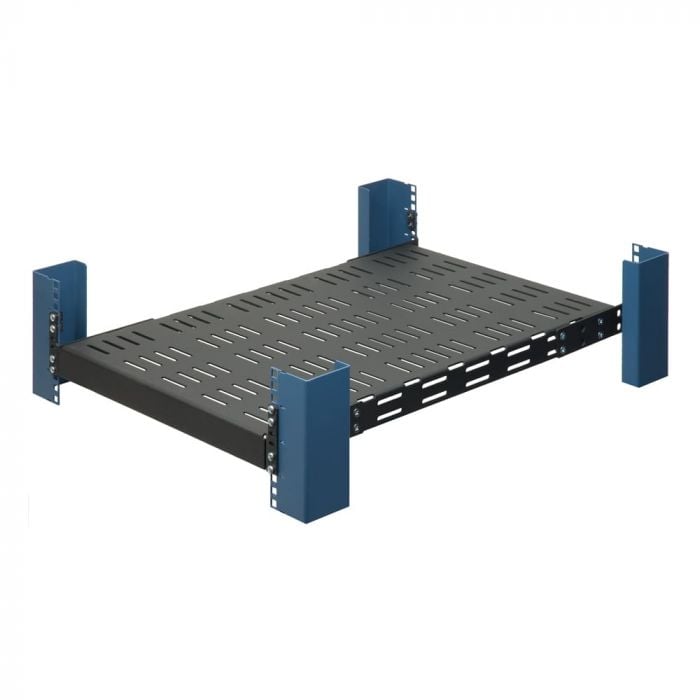

2U Fixed Heavy Duty Rack Shelf

As low as £106.80 £89.00
In stock

Mount 500 lb to 900 lb on a single shelf

  • Supports the even the heaviest equipment
  • Made from Thick 1/8" steel
  • Great for equipment like printers, UPS or tower servers
  • Adjustable mounting brackets

Compatible with 2 Post and 4 Post Racks

  • Weight Capacity 1USHL-116: 500 lbs (226 kgs) 108-0991: 900 lbs (409 kgs)
  • Shelf Depth: 28" (711 mm)
  • Adjustable Mounting Depth: 15 - 31.5" (381 - 800 mm)
  • Fits square, round, threaded holes

See "Additional Information" for Technical Specifications.

RoHS-Symbol (desktop image)RoHS-Symbol (mobile image)
TAA Compliant (desktop image)TAA Compliant (mobile image)

RackSolutions' Fixed Heavy Duty Rack Shelf is built to withstand even the heaviest equipment in a server rack. The shelf's 1/8" steel construction helps give the shelf an impressive 500 lbs (226 kgs) weight capacity and a depth of 28 inches (711 mm).

For even heavier equipment, a version with a 900 lb (226 kgs) weight capacity is available. The extra heavy-duty version of this shelf uses stronger front and rear brackets that better spread the load of the shelf.

Our heavy-duty rack shelves can be installed into racks with square, round, or threaded holes in EIA standard 2Post relay racks. They are ideal for equipment like large switches, UPSes and more.

Light Duty Server Rack Shelf 24"Light Duty Server Rack Shelf 24"

108-4013

Strength
Light Duty

Weight Capacity
100 lbs.

Sliding / Fixed
Fixed

Light Duty 23" Wide Server Rack ShelvesLight Duty 23" Wide Server Rack Shelves

108-4261

Strength
Light Duty

Weight Capacity
100 lbs.

Sliding / Fixed
Fixed

Heavy Duty 23" Wide Server Rack ShelvesHeavy Duty 23" Wide Server Rack Shelves

1USHL-116-23

Strength
Heavy Duty

Weight Capacity
500 lbs.

Sliding / Fixed
Fixed

2U Fixed Heavy Duty Rack Shelf (desktop image)2U Fixed Heavy Duty Rack Shelf (mobile image)

1USHL-116

Strength
Heavy Duty

Weight Capacity
500 lbs.

Sliding / Fixed
Fixed

2U Fixed Extreme Heavy Duty Rack Shelf (desktop image)2U Fixed Extreme Heavy Duty Rack Shelf (mobile image)

108-0991

Strength
Extreme Heavy Duty

Weight Capacity
900 lbs.

Sliding / Fixed
Fixed

More Information
Country of Manufacture United States
Included Hardware 1USHL-116 | 108-0991
  • Assembly Hardware:
    • (16) 1/4-20 Flat Head Screws
    • (16) 1/4-20 Nuts
  • Rack Hardware:
    • (16) 12-24 Nuts
    • (16) 10-32 Pan Head Screws
    • (16) 12-24 Pan Head Screws
    • (16) 12-24 Cage Nuts "Black"
Dell Part Number 108-0991 - A5713398
1USHL-116 - A7258943
For a full list of Dell SKUs setup in the Dell ordering system visit our Dell SKU page.
Synnex Part Number 1USHL-116 - 4614582
108-0991 - 5435872
Ingram Part Number 1USHL-116 - D34827
108-0991 - NE8991
Strength Heavy Duty
Equipment Depth 28" ( 711 mm)
Shelf Type Vented
Rack Type 2 Post , 4 Post
Fixed/Sliding Fixed
Shelf Surface Area 28" x 17.58" ( 711 mm x 447 mm)
Finish Black textured powder coat
Mounting Depth Range 15 - 31.5" (381 - 800 mm)
Weight Capacity 1USHL-116: 500 lbs (226 kgs)
108-0991: 900 lbs (409 kgs)
Rack Units 2U
Tool-less/Standard Standard
Overall Installation Depth 31.5" (800 mm)
Material 1/8" steel
TAA Compliant Yes
RoHS Compliant Yes
