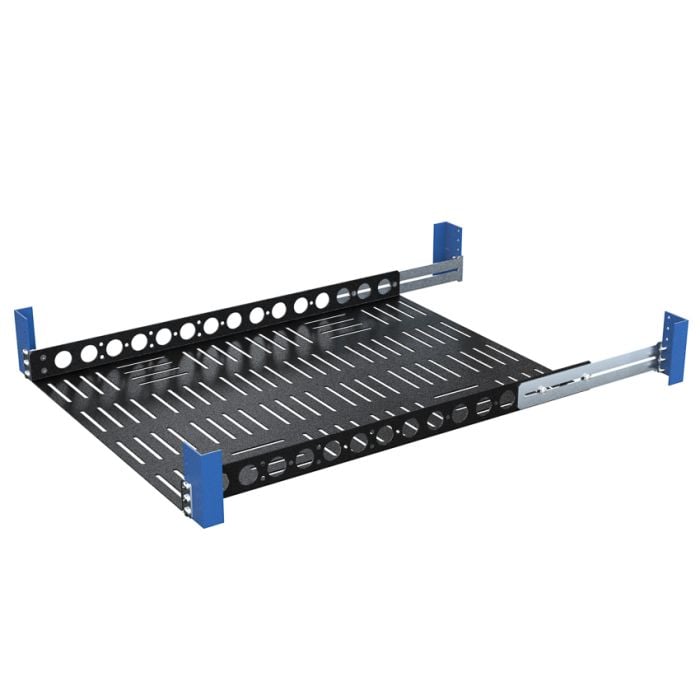

Server Rack Shelf

P/N: 108-4013

Fits any 2Post, 4Post rack

  • Fits square, round, threaded holes
  • 24" shelf - adjustable mounting from 11 - 30" (279 - 762 mm)
  • 2Post flush or center mount

Fixed shelf for any equipment

  • Capacity: 100 lbs (45.36 kgs)
  • Shelf depth: 24" (610 mm)
  • Ideal for tower, printer, desktop
  • Steel shelf construction
  • Includes anti-slip mat

Alternate products

Product Name P/N: Availability Price Qty
Light Duty Server Rack Shelf 24" 108-4013
In Stock
£50.00

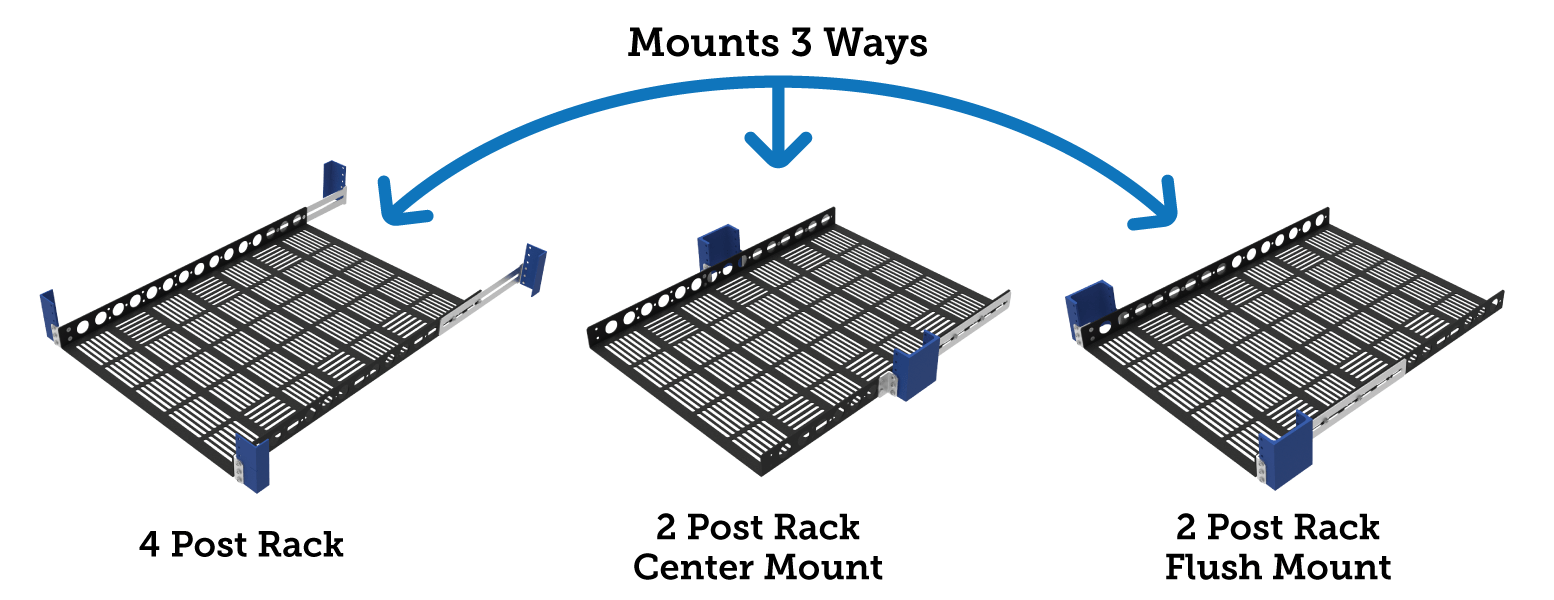

Mounts 3 Ways

4 Post Rack
2 Post Rack - Center Mount
2 Post Rack - Flush Mount

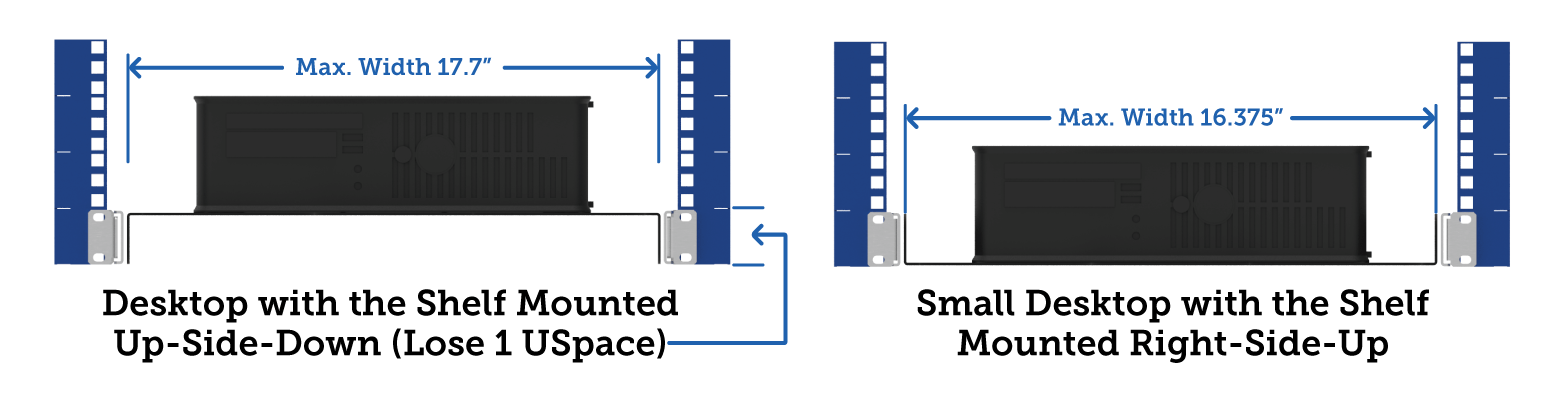

Mounting options

Mount up-side-down for maximum width or right-side-up for minimum U space

Features

This rack shelf is compatible with 19" server racks from manufacturers such as Dell, HP and IBM. This rack shelf can be installed into racks with square, round or threaded holes. Rack mount equipment weighing up to 100 lbs can be installed using this rack shelf. The rack shelf is 24" deep and can be installed in server racks with installation depths up to 30" and in multiple configurations.

Server Rack Shelf - Technical Specifications

Finish Black, textured, powder coat
Included Hardware 10-32 and 12-24 screws
Cage nuts are provided for square hole racks
Front brackets: 2 adjustable position front rack flanges
Rear slide brackets: 2 adjustable position rear rack flanges
Tech Notes This shelf is capable of being installed right side up or upside down, depending
on the equipment width.
