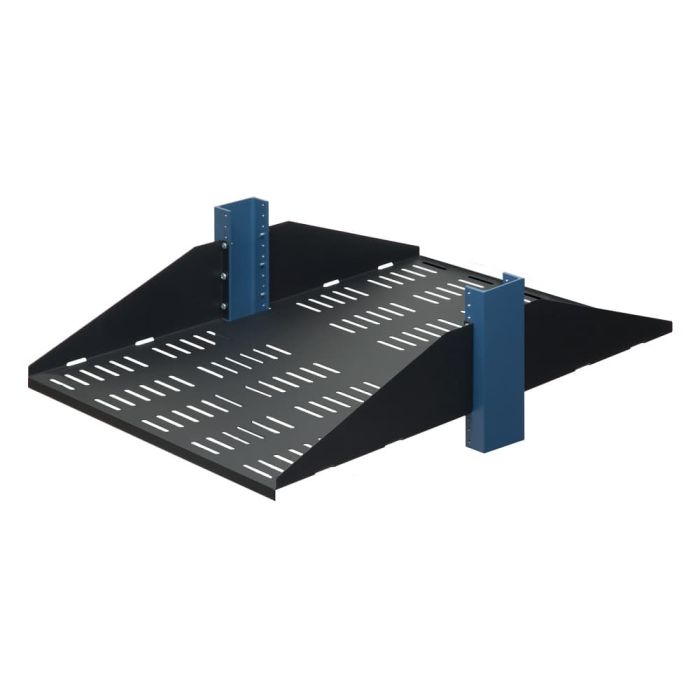

3U 2 Post Relay Rack Shelf - 29" depth

Availability: In stock

3U 2 Post Relay Rack Shelf - 29" depth
  • Vented - 29" 2Post Rack Shelves
    Vented - 29" 2Post Rack Shelves
    close
  • Solid - 29" 2Post Rack Shelves - 3USHL-022FULL-29US
    Solid - 29" 2Post Rack Shelves - 3USHL-022FULL-29US
    close

Great for Mounting Large Networking and IT Equipment

  • Solid and vented options available
  • Options with equipment stops (flanges) facing up or down
  • Slots for equipment straps along the side of the shelf
  • Center mounts on 2 Post relay and telco racks

Compatible With 2 Post Racks

  • Weight Capacity: 300 lbs (136 kgs)
  • Shelf Depth: 29" (737 mm)
  • Compatible with round, threaded, or square rack holes
NOTE: Compatible with 2 Post racks with 3" (76.2 mm) uprights.

See "Additional Information" for Technical Specifications.
Rack Solutions Promise

Vented Shelves

Product Name SKU Price Qty
2Post Shelf, Vented, Flanges Up, 29" 3USHL-022FULL-29UV
Excl. VAT: £50.00 Incl. VAT: £60.00
2Post Shelf, Vented, Flanges Down, 29" 3USHL-022FULL-29DV
Excl. VAT: £50.00 Incl. VAT: £60.00

Solid Shelves

Product Name SKU Price Qty
2Post Shelf, Solid, Flanges Up, 29" 3USHL-022FULL-29US
Excl. VAT: £45.00 Incl. VAT: £54.00
2Post Shelf, Solid, Flanges Down, 29" 3USHL-022FULL-29DS
Excl. VAT: £45.00 Incl. VAT: £54.00
Description

Details

RackSolutions 3U 2 Post Relay Rack Shelf has depth of 29 inches (737 mm) and a 300 pound (136 kgs) weight capacity, making it a perfect for solution for mounting large heavy networking IT equipment in a 2Post rack. The shelf features slots along its side used for securing equipment using our equipment straps. Options with flanges, also called equipment stops, facing either up or down to fit a wider variety of needs. Both vented and solid options are available to assist with airflow. Our 2 Post shelves are compatible with most standard EIA 19" 2 post telco and relay racks.


  • 3U 2 Post Relay Rack Shelf Feaures
    3U 2 Post Relay Rack Shelf Features
    RackSolutions 3U 2 Post Relay Rack Shelf is avaliable vented or solid with flanges up or down.
Additional Information

Additional Information

Assembly Notes Phillips head screwdriver required
Equipment Depth Supports equipment up to 29" (736 mm). The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges. The flanges increase load capacity and prevent equipment movement.
Shelf Type Solid , Vented
Rack Type 2 Post
Fixed/Sliding Fixed
Shelf Surface Area Flanges Up: 28.89" x 17.78" (734 x 445 mm)
Flanges Down: 29" x 17.78" (737 x 445 mm)
Finish Black textured powder coat
Mounting Depth Range Compatible with 2Post racks with 3" (76.2 mm) side posts
Included Hardware 10-32 & 12-24 pan head screws
Weight Capacity 300 lbs (136 kgs)
Rack Units 3U
Tool-less/Standard Standard
Overall Installation Depth 29" (736.6 mm)
Material 16 GA Steel
RoHS Compliant Yes
Tech Notes Shelf depth is measured from front to rear including flanges
