Slide mount servers, desktops

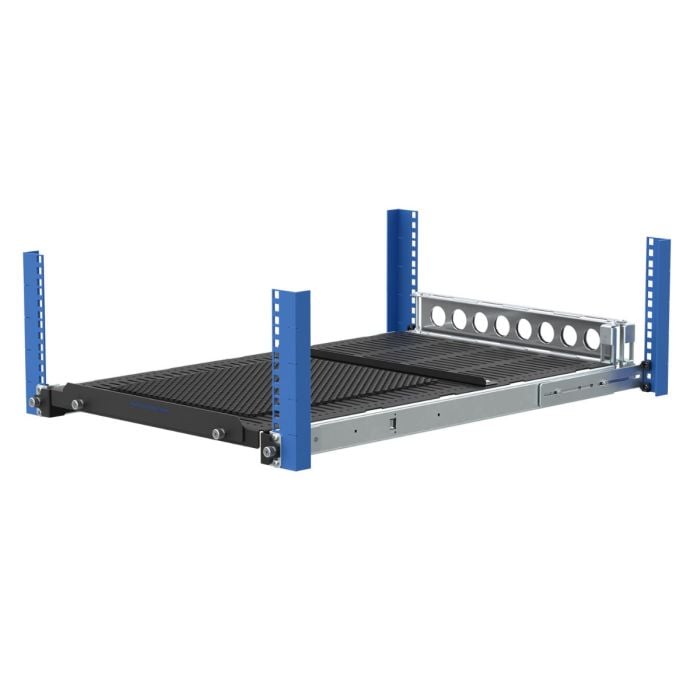

Front view - Sliding Equipment Shelf

 Front view - Sliding Equipment Shelf

Hover to View, Click to Zoom

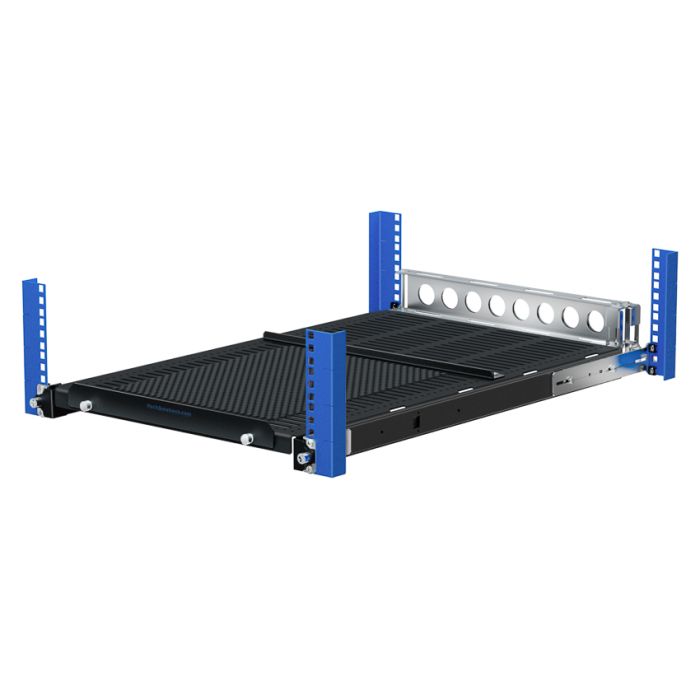

  • Front view - Equipment Shelf
  • Rear view with server - Equipment Shelf
  • Closeup view - Sliding Equipment Shelf and Front, Stop Bracket
  • Closeup view - Equipment Shelf
  • Rear view - Sliding Equipment Shelf
  • Side view - Sliding Equipment Shelf
  • Side view - Sliding Equipment Shelf without CMA
  • Side view - Sliding Equipment Shelf without CMA
  • Cable Management Arm for Sliding Equipment Shelf
  • Close-up view - Cable Management Arm for Sliding Equipment Shelf

Sliding Equipment Shelf

P/N: 1USHL-115

Fits any 4 Post rack

  • Fits square, round, threaded holes
  • 28" sliding shelf
  • Adjustable mounting depth: 15.5 - 31.5" (393 - 800 mm)
  • Equipment depth: 26.8"

Sliding shelf for servers, desktops

  • Weight capacity: 95 lbs (43 kgs)
  • Cable management arm (CMA), equipment stops included
  • Tower-to-Rack conversion
  • Dell, HP, IBM compatible
  • High quality, ball bearing slides

Applications

Product Name P/N: Availability Price Qty
Sliding Equipment Shelf with CMA 1USHL-115
In Stock
£139.00
Sliding Equipment Shelf without CMA 115-1526
In Stock
£129.00

Features

These equipment shelves are compatible with most 19" EIA standard server racks. These equipment shelves have a 95 lb equipment capacity and will support a wide variety of electronic equipment. Computer equipment up to 26.8" deep can be supported on this 19" equipment shelf. The slide rails extend a full 28" on this standard equipment shelf model. Cable management is a standard feature of equipment shelves providing a method to professionally route and secure the cables. Includes removable, front equipment stop bar, adjustable, rear equipment stop bar, anti-slip mat and optional straps for securing equipment for transport or seismic applications.

Sliding Equipment Shelf - Technical Specifications

Rack Type 4Post
Rack Units Shelf is 1U
3U is required when CMA is in use
Equipment stop brackets require less than 1U of additional space
Weight Capacity 95 lbs (43 kgs)
Equipment Depth Maximum: 26.8" (681 mm)
Mounting Depth Range 15.5 - 31.5" (394 - 800 mm)
Overall Installation Depth Minimum: 28.7" (729 mm)
Shelf Surface Area 16.5" W x 26.8" D (419 x 681 mm)
Shelf Type Vented
Cable Management Articulated arm: Mounts on right or left side. Velcro straps included
Finish Textured, black, powder coated
Included Hardware Cage nuts and screws
Hole Type Compatible with the industry standard 3/8" square hole racks
Cage nuts included for square hole mounting
Compatible with all standard round (non-threaded) holes
Compatible with all standard threads including 10-32, 12-24 and metric M6
Assembly Notes Removable, front equipment stop bar
Adjustable, rear equipment stop bar
Optional straps for securing equipment for transport or seismic applications
