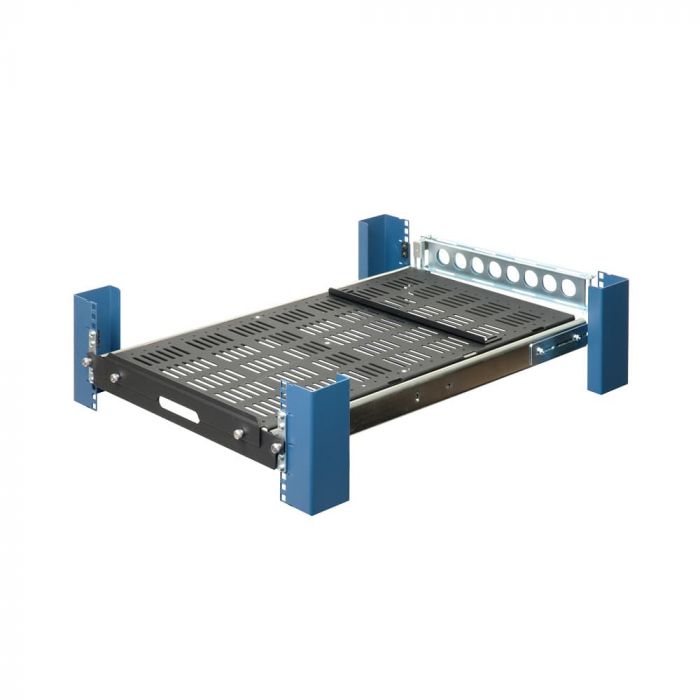

2U Heavy Duty Sliding Rack Shelf 28in Depth

RoHS Compliant (default) RoHS Compliant (hover)
TAA Compliant (default) TAA Compliant (hover)
As low as £192.00 £160.00
In stock

A Shelf for Nearly Everything

  • Professionally route wires with cable management arm
  • Constructed of 13 GA steel
  • Front and rear equipment stops
  • Two anti-slip mats are included with your purchase

Fits Any 4 Post Rack

  • Weight Capacity: 235lbs (107kgs)
  • Shelf Depth: 29" (737 mm)
  • Mounting Depth:19" - 31" (483mm - 787mm)
  • Compatible with round, threaded, or square rack holes

See "Additional Information" for Technical Specifications.

The RackSolutions Heavy Duty Sliding Shelf is an ideal solution for environments where servers, computers and other equipment need to be stored on a sturdy shelf that can be slid forward for easy access during operation. The Sliding Rack Mount Shelves are compatible with square, threaded and round hole-based server racks, and feature an extension reach of 29".

At 28" inches deep, the shelf allows users to safely store computers and other equipment. The versatile solution is also durable, as it is constructed of cold rolled steel and capable of holding 235 lbs of hardware. In terms of compatibility, the Sliding Rack Mount Shelves will fit on almost any standard EIA standard server racks (opens in a new tab).

For sliding shelves, the supplementary accessories are also critical, and RackSolutions has them all. The slide is fitted with ball bearings and stops to ensure stable and secure operations. It also boasts a built-in cable management arm to help users professionally route wires regardless of what device they store on the shelf. Two anti-slip mats also come with any purchase to ensure equipment does not slide when the shelf is moved.

Light Duty Laptop Shelf (desktop image)Light Duty Laptop Shelf (mobile image)

Strength
Light Duty

Weight Capacity
75 lbs.

Sliding / Fixed
Sliding

Sliding Equipment Shelf (desktop image)Sliding Equipment Shelf (mobile image)

Strength
Standard

Weight Capacity
95 lbs.

Sliding / Fixed
Sliding

Heavy Duty Sliding Shelf (desktop image)Heavy Duty Sliding Shelf (mobile image)

Strength
Heavy Duty

Weight Capacity
235 lbs.

Sliding / Fixed
Sliding

2U Extreme Heavy Duty Sliding Shelf 28in Depth (500 lbs) (desktop image)2U Extreme Heavy Duty Sliding Shelf 28in Depth (500 lbs) (mobile image)

Strength
Extreme Heavy Duty

Weight Capacity
500 lbs.

Sliding / Fixed
Sliding

More Information
BABA Compliant No
RoHS Compliant Yes
TAA Compliant Yes
UL Compliant No
ETL Compliant No
Country of Manufacture United States
Included Hardware 2USHL-130
  • Kit Contents:
    • (1) Partially Assembled Shelf
    • (2) Anti-Slip Mat 12" x 15”
    • (1) 50” Hook and Loop Strap for Cable Arm
    • (2) Heavy Duty Equipment Straps
  • Brackets:
    • (2) Rear Rack Brackets
    • (2) Front Rack Brackets
    • (1) Removable Front Stop
    • (1) Adjustable Rear Stop
    • (1) Cable Arm Extension Bracket
    • (2) Cable Management Arms
    • (2) Arm Attachment Brackets
  • Front Assembly Hardware Kit:
    • (4) 10-32 x 5/16” Flat Head Screws
  • Rear Assembly Hardware Kit:
    • (6) 10-32 x 1/2” Flat Head Screws
    • (6) 10-32 Nuts
  • CMA & Equip Stop Hardware Kit:
    • (2) 8-32 x 3/8” Pan Head Screws
    • (2) 8-32 Nuts
    • (4) 8-32 x 1/4” Flat Head Screws
    • (3) 2.5” Clevis Pins & Cotter Pins
  • Rack Mount Hardware Kit:
    • (2) Kits Included
    • (8) 12-24 x 1/2” Screws
    • (8) 10-32 x 1/2” Screws
    • (8) 12-24 Square Nuts
    • (8) 10-32 Cage Nuts
Dell Part Number 2USHL-130: A0608912
Synnex Part Number 2USHL-130 - 4614585
Ingram Part Number 115-1529 - YV6548
2USHL-130 - J49680
Fixed/Sliding Sliding
Finish Black, textured powder coat
Hole Type Compatible with round, threaded, or square rack holes
Shelf Depth 25"-30" (635mm-762mm)
Material 13 GA Steel
Tech Notes 3U is required when CMA is in use
Shelf height: 2.2" (1.25U) (56 mm)
235 lbs (106.5 kgs) for 4Post mounting
Capacity is set by rail capacity
