Heavy Duty Sliding Shelf (500 lbs)

£444.00 £370.00
In stock

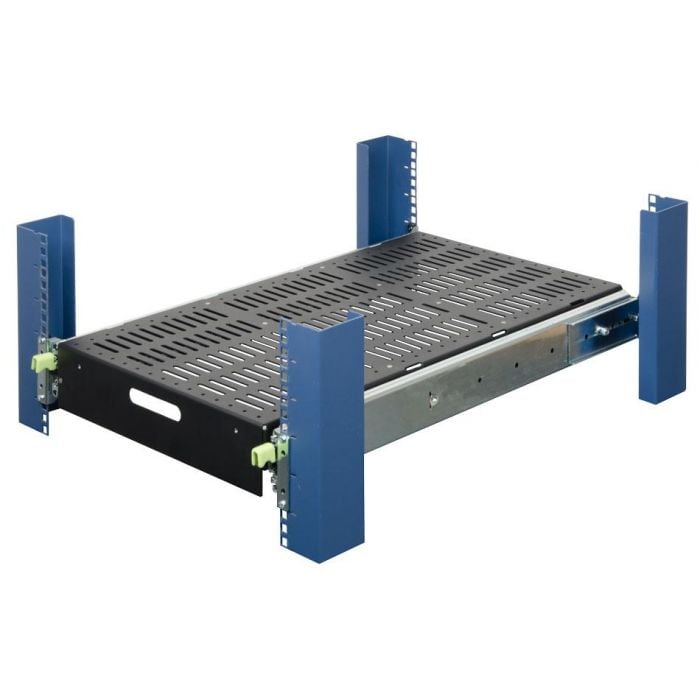

Sliding Shelf for Heavy Equipment

  • Great for non-rack-mountable equipment, large tower servers, and heavy switches
  • Surface area: 28" L x 17.6" W (711 x 447 mm)
  • Heavy-duty, ball bearing slides

Fits Any 4 Post Rack

  • Compatible with square, round, threaded holes
  • Shelf Depth: 28" (711 mm) deep, 17.6" (447 mm) wide
  • Mounting Depth: 18 - 30" (457 -762 mm)
  • Weight Capacity: 500 lbs (227 kgs)

This has been tested to be compatible with:

  • Cisco Catalyst 6513-E
  • Cisco Catalyst 6509-V-E
  • Dell PowerEdge VRTX

See "Additional Information" for Technical Specifications.

RackSolutions Heavy Duty Sliding Shelf (500 lbs) is an ideal solution in environments where servers, computers and other equipment needs to be stored on a sturdy heavy duty pull out shelf that can be slid forward for easy access during operation.

 Our heavy duty slide out shelves are compatible with square, threaded and round hole-based server racks, and feature an extended reach of 29". The heavy-duty sliding shelf itself is 28" deep, letting users safely store most computers and other equipment. The heavy-duty sliding shelf hardware solution is also durable, as it is built of rolled steel and capable of holding 500 lbs of equipment.

In terms of compatibility, the heavy duty roll-out shelving will fit on almost any standard EIA standard server racks.

More Information
Visbility Bypass Enabled Yes
Assembly Notes Phillips head screwdriver required
Equipment Depth Supports items up to 28" (711 mm) Deep, 17.6" (447 mm) Wide
Shelf Type Vented
Rack Type 4 Post
Fixed/Sliding Sliding
Shelf Surface Area 28" L x 17.6" W (711 x 447 mm)
Finish Black, textured powder coat
Mounting Depth Range 18 - 30" (457 -762 mm)
Included Hardware 10-32 & 12-24 screws
Cage nuts included for square hole racks
Weight Capacity 500 lbs (227 kgs) Capacity
Tool-less/Standard Standard
Hole Type Fits Square, Round, Threaded Holes
Amazon ASIN B00UVKA9M8
TAA Compliant Yes
RoHS Compliant Yes
Tech Notes This has been tested to be compatible with
Cisco Catalyst 6513-E
Cisco Catalyst 6509-V-E
Dell PowerEdge VRTX
